Panasonic AG-AC90 AVCCAM Handheld Camcorder

Free Shipping

Availability : In Stock

Ships in 1-2 Business Days
Item: 323491
Manufacture: Panasonic
Condition: New
Extended Warranty Coverage:
Price: $1,549.00 $2,095.00
Call Us855-485-4885
SORT BY

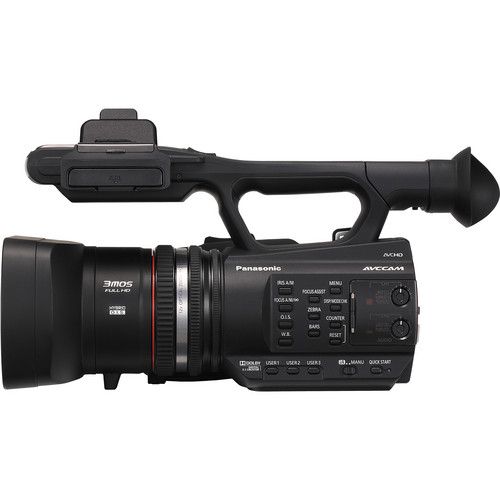

Panasonic's AG-AC90 AVCCAM combines the high image quality, advanced functions and easy operation that professionals demand in a stylish, easy-to-handle design. The high-speed F1.5 lens extends from 29.8 mm (35 mm equivalent) wide-angle to 12x optical zoom. The AVCHD recorder section supports both PS mode, for Full-HD progressive image production, and pro-use PH mode. They realize the versatile shooting angles, image quality, and recording formats you need for news gathering and image production. Other professional operating features include triple manual rings (focus, zoom and iris), XLR microphone/audio inputs, and remote terminals to provide the system capabilities that professional applications require.



The Panasonic AG-AC90 AVCCAM Handheld Camcorder features 1/4.7"" 3MOS sensors, with 2.19MP each, to capture Full HD 1920x1080 resolution video. Variable frame rates record HD video at 60p, 60i, 30p, and 24p. The camera's fixed lens has a 12x zoom ratio, up to f/1.5 brightness, a 35mm equivalent of 29.8-357.6mm and manual control rings for focus, zoom and iris. In addition, Nano Surface Coating works to reduce ghosting and flare.

The AG-AC90 has two SD card slots for expanded memory or simultaneous recording to both cards for an instant back-up. A five-axis image stabilizer improves stabilization for handheld shooting, and 4x pixel shifting technology helps to create a sharper image. An Intelligent 25x digital zoom function makes automatic adjustments of edge, gradation and detail.

Professional AVCCAM HD recording modes include PS mode, which records 1080/60p at 28 Mbps. Additionally, PH mode averages 21-24 Mbps, and HA mode clocks in at approximately 17 Mbps. Finally, for extended recording times, HE mode uses approximately 6 Mbps. The AG-AC90 is compatible with Panasonic's ultra high-speed UHS-1 series of memory cards, as well as SDXC and SDHC cards.

In addition to the built-in microphone, two XLR audio inputs provide an interface for professional grade, external microphones. Audio Channel 1 and Channel 2 feature individual level controls and input selection.

Sensor Type

MOS (x3, with backside illumination)

Sensor Size

1/4.7"

Sensor Resolution

2.19 MP (2,190,00 effective pixels)

Minimum Illumination

Approx. 3 lx (iA mode, auto slow shutter ON)



Lens

Focal Length

2.84 - 34.1 mm

35mm Equivalent Focal Length

29.8 - 357.6 mm

Zoom Ratio

12x optical
25x i.Zoom
2x,5x,10x digital zoom

Aperture

Max: f/1.5

Optical Image Stabilization

5-Axis Hybrid OIS

Lens Coating

Nano Surface Coating

Control Rings

x3 (focus, zoom, iris)

Filter Thread

49 mm

Image Stabilization

Optical (hybrid optical image stabilizer, active mode)



Recording Specifications

Signal System

NTSC (60 Hz)

Video Format

AVCHD version 2.0 compliant, AVCHD Progressive

Compression

Video: MPEG-4 AVC/H.264
Audio: Dolby Digital (5.1ch/2 ch)
Still Picture: JPEG (based on Exif 2.2 standard)

Frame Rates

HD 1080: 60p, 60i, 30p, 24p
SD 480: 60i

Recording Modes

PS mode: approx. 28 Mbps (60p only)
PH mode: approx. 21-24 Mbps
HA mode: approx. 17 Mbps
HE mode: approx. 6 Mbps

Shutter Speed

60i/60p/30p: 1/30 to 1/2000 (auto slow shutter ON), 1/60 to 1/2000 (auto slow shutter OFF)
Note: at motion picture recording, manual mode

Audio Channels

CH1, CH2

Audio Format

Dolby Digital

Still Capture

3 MP still photographs (can be captured during video recording)



Interface

Recording Media

SD Card Slot (x2, compatible with UHS-1 and SDXC/SDHC/SD memory cards)

Input/Outputs

HDMI output (1080p/1080i/480p)
AV Multi output (D-connector, component video, composite video and audio 2 channel)
USB connector
2.5mm remote terminal for zoom and REC START/STOP
3.5mm remote terminal for iris and focus
XLR audio input (x2, MIC/LINE/+48V selectable)



General Specifications

Displays

Monitor: 3.5" LCD with 1,152 K dot resolution (rotates 270) Viewfinder: 0.24" LCOS color EVF with 263 K dot resolution
Functions: focus assist, zebra, color bar

Supply Voltage

DC 12V (when the AC adaptor is used)
DC 7.2V (when the battery is used)

Power Consumption

12.9 W

Operating Temperature

32 ~ 104 F (0 ~ 40 C)

Operating Humidity

10 - 80% (no condensation)

Dimensions

6.31 x 7.69 x 13.06" (160 x 195 x 350 mm)

• Brand New Factory Fresh Import Model
