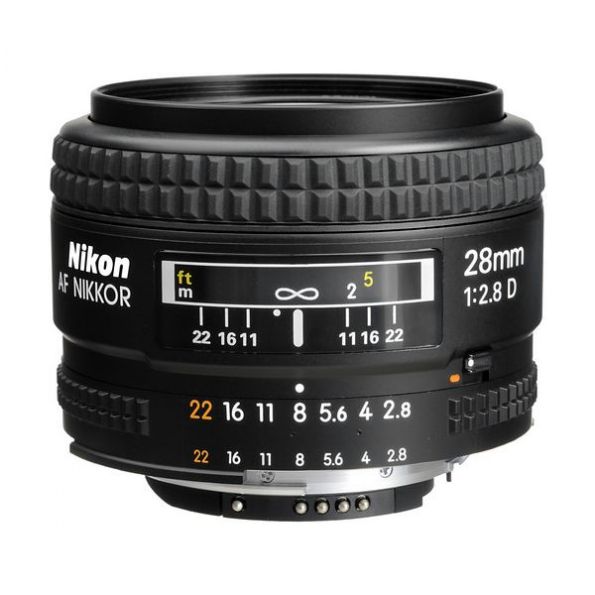

Nikon 28mm AF Nikkor f/2.8D Autofocus Lens

Free Shipping

Availability : In Stock

Ships in 1-2 Business Days
Item: 301364
Manufacture: Nikon
Condition: New
Extended Warranty Coverage:
Price: $749.00 $999.00
Call Us855-485-4885
SORT BY

The 24mm ƒ/2.8 AF was originally marketed in 1986, with a thin plastic focus ring; subsequent versions were released in 1991 (AF-N, using the newer rubber focus ring) and 1994 (the current AF-D version, which sends distance information to the camera). The model we've tested is actually the AF-N version, but the optical formula remains unchanged between all three versions.

The 24mm ƒ/2.8 was designed to work with film cameras, and is compatible with sub- and full-frame Nikon digital SLR camera bodies. The lens uses a mechanical screw drive to focus, powered by the camera body, so it won't autofocus on entry-level Nikon dSLR cameras (at time of writing, D40, D40x, D60, D3000 and D5000). The effective field of view on these and other DX-sensor based cameras is 42mm.

For a lens design that is over twenty years old, the 24mm ƒ/2.8 stands up quite well in our testing. Mounted on the subframe D200 and used wide open at ƒ/2.8, corner softness is significant (3-4 blur units) but there is a generous sweet spot of sharpness in the center of the image, at around 1.5 blur units. Stopping down improves sharpness results significantly; at ƒ/4, the corners become much less soft, at around 2 blur units, and the sweet spot of sharpness extends much further to the corners. Central sharpness improves slightly as well, ranging between 1-1.5 blur units. There's not much additional improvement stopping down further, and by ƒ/16 diffraction limiting has set in. At this aperture we note approximately 2 blur units across the frame. At ƒ/22, it's around 3 blur units across the frame.

Image Circle 35mm
Type Wide Prime
Focal Length 24mm
APS Equivalent 36mm
Max Aperture ƒ/2.8
Min Aperture ƒ/22
Diaphragm Blades 7
Lens Construction 9 elements in 9 groups
Diagonal Angle of View(Based on image circle) 84 degrees
Focus Details Close Range Correction (CRC)
Front Element Rotation No
Zoom System n/a
Closest Focus 0.3m / 1 ft.
Magnification Ratio 0.11x / 1:8.9
Filter Size 52mm

• 52mm Front Cap
• LF-1 Rear Lens Cap for F Mount Lenses
• HN-2 Screw-On Lens Hood

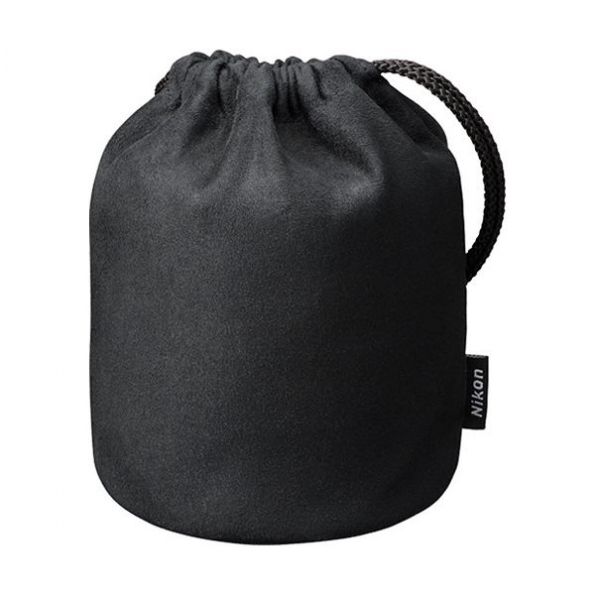

• CL-0715 Soft Lens Case
• Brand New Factory Fresh Import Model
